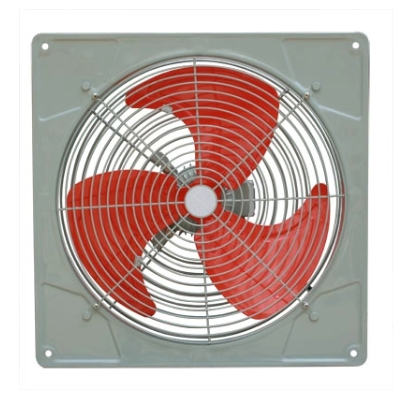

FA‐C Series Extraction Fan
Product Description
- The FA-C Series extraction fan which is special design to save electric power and low noise, keep high wind fow.
- The impeller made of aluminum alloy,has strong points such as operate steadily, beauty appearance, rational structure, etc.
- The motor can keep running continuously for long hours, high quality copper windings and quality testing each motor with care.
application
- It widely used for ventilation and sunstroke in office, oil, militaryindustry, chemical industry, medicine, metallurgy, etc.
- Our FA-C Extraction fans are designed precisely for such highly sensitiveconditions.
- Aside from many other application areas, our FA-C fans are in use in the chemical industry, in milis, biogas plants, landfills, sewage plants,
flour storage facilities as well as food processing, - They ensure the exhaust of hot temperature air and smoke or dust aa well,
TECHNICAL PARAMETERS
| Model no. | FAC-30 | FAC-40 | FAC-50 | FAC-60 |
|---|---|---|---|---|
|
Diameter (mm / Inches) |
300(12″) |
400(16″) |
500(20″) |
600(24″) |
|
Voltage (V) |
220 |
220 |
220 |
220 |
|
Frequency (Hz) |
50 |
50 |
50 |
50 |
|
Speed (rpm) |
1400 |
1400 |
1400 |
960 |
|
Power (W) |
80 |
150 |
280 |
350 |
|
Air Flow (m3/min) |
30 |
58 |
110 |
130 |
|
Static (pa) |
54 |
58 |
65 |
64 |
